A mechanical keyboard has anywhere from 60 to over 100 individual switches, and checking each one manually by feel is unreliable at best. A mechanical keyboard tester gives you a visual, key-by-key confirmation that every switch on your board registers correctly, both on press and on release. This guide covers how to use the tester properly, what specific problems it reveals, and how to interpret results that point to switch wear versus a simple connection issue.
What a Mechanical Keyboard Tester Checks
A mechanical keyboard tester displays a visual layout of your keyboard and highlights each key the moment you press it, then clears the highlight the moment you release it. This confirms three things per key: whether the press registers at all, whether the release registers cleanly, and whether the timing between the two feels normal. For a mechanical keyboard specifically, this matters more than on cheaper membrane boards because individual switches can fail independently while the rest of the board works perfectly. A single dead or double-registering switch in an otherwise healthy keyboard is a common and easily missed problem until you test methodically.
How to Run a Full Keyboard Test
Open the Mechanical Keyboard Tester and press every key on your board in sequence, starting from one corner and working systematically across rows rather than jumping randomly. This ensures you do not accidentally skip a key. Watch the on-screen layout for each press to confirm the corresponding key highlights immediately and clears immediately on release. Pay particular attention to less frequently used keys like function keys, number pad keys, and modifier keys, since these often go untested for months in normal use and can develop unnoticed switch issues. A full pass across every key takes about two minutes and gives you complete confidence in your keyboard’s current state.
What Dead Keys and Double Presses Reveal

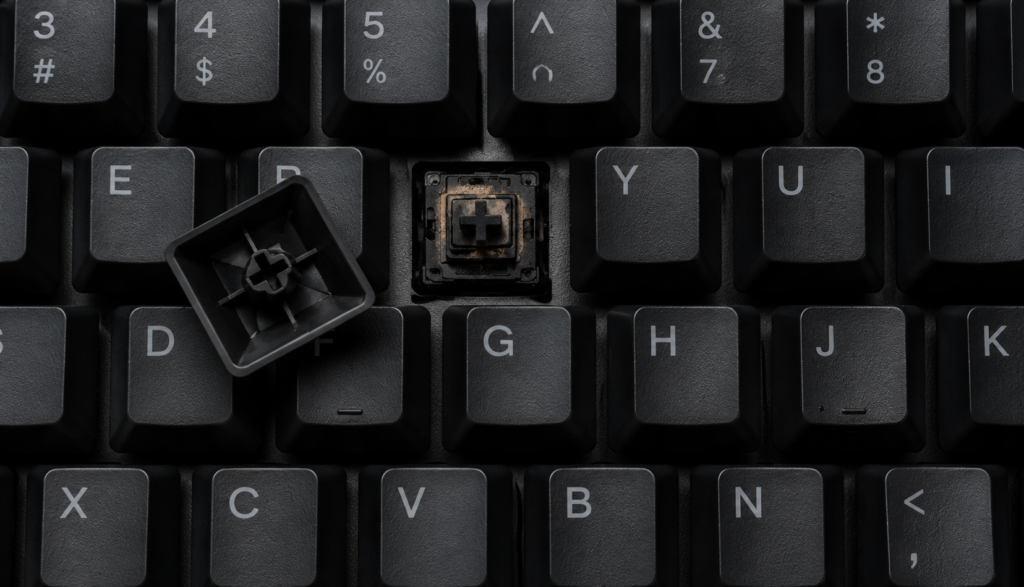

If a key does not highlight at all when pressed, that switch has failed completely, either from total contact failure or a broken connection to the circuit board beneath it. This is usually unmistakable and requires either switch replacement or full keyboard replacement depending on whether the board supports hot-swappable switches. If a key highlights multiple times from a single press, you are seeing switch chatter, where worn contacts bounce and send extra signals before settling. This is an early-to-mid stage symptom of switch degradation and tends to worsen gradually rather than appearing suddenly. Keys that highlight with a noticeable delay compared to others suggest debounce timing issues specific to that switch.
Testing Specific Switch Types
Different switch types within the same keyboard can show different behavior under testing. Linear switches, which have no tactile bump, tend to register cleanly and consistently due to their simple straight-down actuation. Tactile switches with a bump partway through the press occasionally show slight inconsistency if the bump mechanism wears unevenly over time. Clicky switches, mechanically similar to tactile switches with an added click mechanism, can develop a specific failure where the click sound continues but the actual signal registration becomes inconsistent, which a visual tester catches immediately even though the keyboard still sounds normal to the ear.
Diagnosing Connection vs Switch Problems
If an entire row or column of keys fails simultaneously rather than a single isolated key, the problem is very likely in the internal key matrix wiring or the keyboard’s controller rather than the individual switches themselves. This pattern points to a connection or circuit issue rather than mechanical wear, since switch failures are typically random and isolated rather than following the structured rows and columns of the key matrix. If the keyboard tests perfectly on one computer but shows widespread failures on another, the issue is likely a USB port, cable, or driver problem on the second system rather than the keyboard hardware at all.
What to Do When You Find a Problem

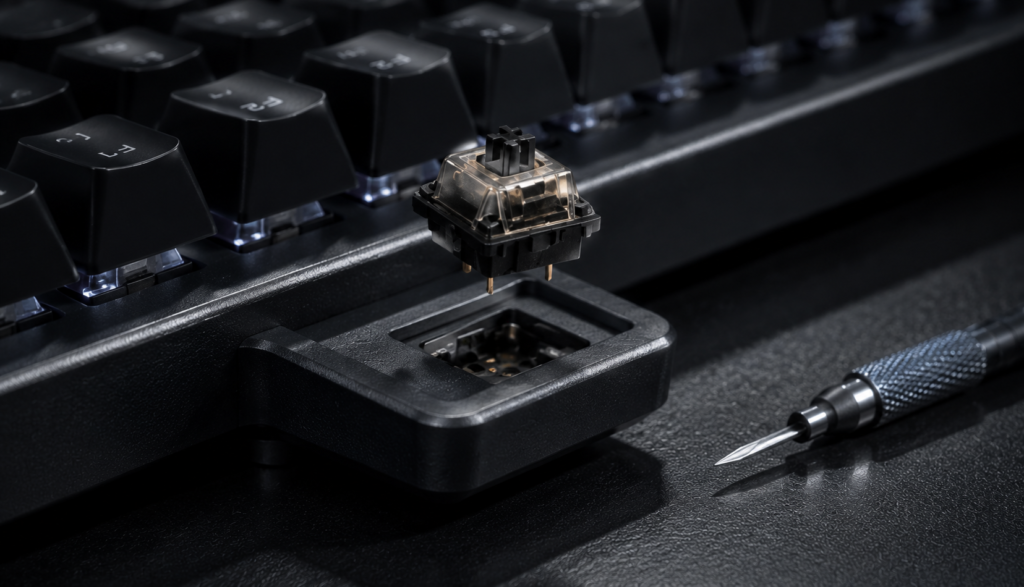

For a single failed or chattering switch on a keyboard with hot-swappable sockets, replacing just that one switch is the fastest and cheapest fix, often costing under a dollar in parts. For soldered keyboards without hot-swap support, replacing a single switch requires desoldering and resoldering, which is more involved but still far cheaper than a full keyboard replacement. If multiple switches across the board show issues simultaneously, or if you find a matrix-level fault affecting entire rows, the keyboard itself may be reaching end of life and a full replacement becomes the more practical choice.
Test Every Key Before It Becomes a Problem
A mechanical keyboard tester takes two minutes to run across a full board and gives you certainty instead of guessing about which keys are healthy. Run the Mechanical Keyboard Tester now, work through every key systematically, and note any dead, chattering, or delayed switches before they interrupt a typing session or cost you a match at the worst possible moment.
Frequently Asked Questions
Q. How do I test if all my mechanical keyboard switches work?
A. Open a mechanical keyboard tester and press every key systematically from one corner across each row. Watch the on-screen layout to confirm each key highlights on press and clears on release. A full pass across the entire board takes about two minutes and reveals any dead or malfunctioning switches.
Q. What does it mean if a key registers multiple times from one press?
A. This is switch chatter, caused by worn contacts bouncing and sending extra signals before settling on a single registration. It is an early-to-mid stage sign of switch degradation that typically worsens gradually over continued use rather than appearing and disappearing randomly.
Q. Why does an entire row of keys fail at once?
A. When a full row or column fails simultaneously, the problem is almost always in the internal key matrix wiring or the keyboard’s controller rather than individual switches. Isolated switch failures tend to be random, while structured row or column failures point to a circuit-level fault.
Q. Can I fix a single dead switch without replacing the whole keyboard?
A. Yes, if your keyboard supports hot-swappable sockets, replacing a single dead switch costs under a dollar and takes minutes. Soldered keyboards require desoldering and resoldering for a single switch replacement, which is more involved but still far cheaper than replacing the entire keyboard.
Q. Should I test function keys and number pad keys too?
A. Yes. These keys are used less frequently in normal typing and gaming, which means switch issues can develop unnoticed for months. Testing every key including rarely used ones during a full pass ensures you catch problems before they matter during an unexpected use case.
